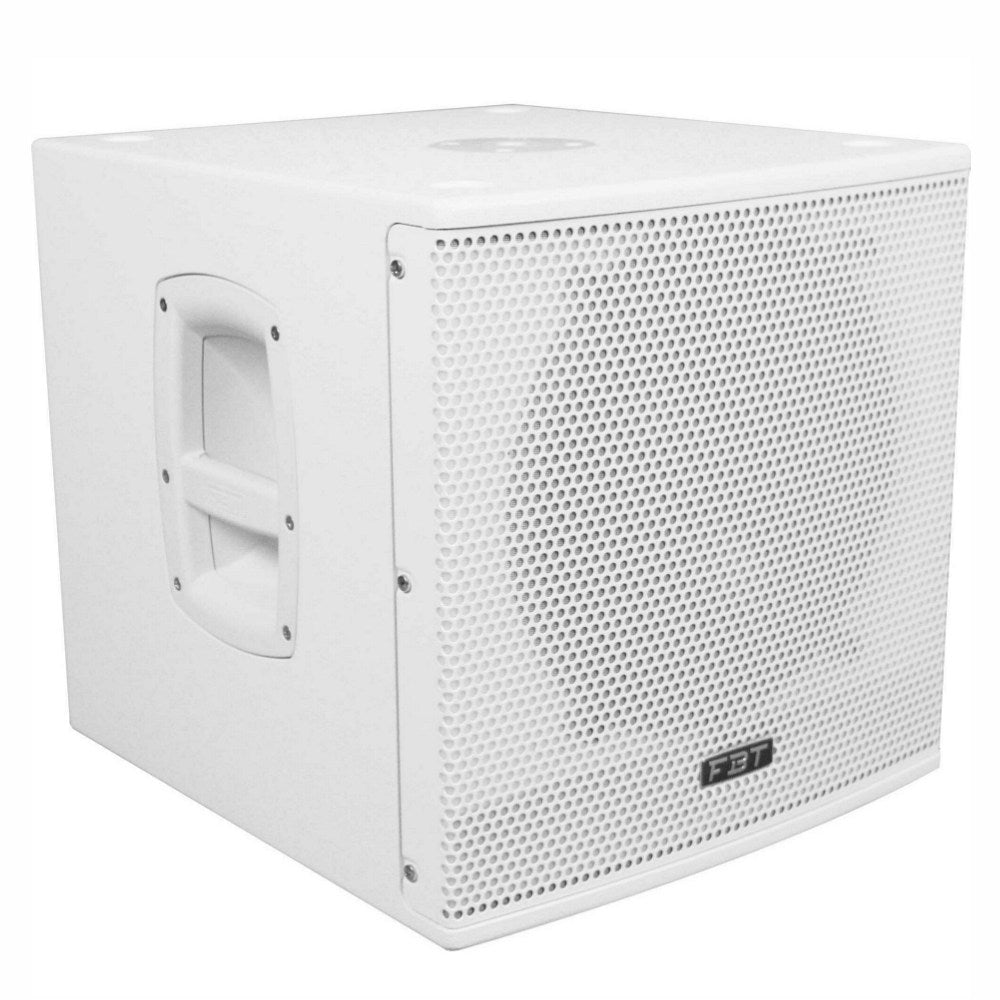

The SUBline 112SA has been completely redesigned and been upgraded to 700w RMS. The 112SA now superceeding the older model 12SA. A Bass-reflex cab, built in birch plywood , full metal grille and aimed to extend the low frequency response to a wide range of FBT speaker systems.
Created with the aim to maximize SPL/SIZE ratio, they have Class D amplifiers, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker.
With IN/OUT stereo connectors, it is possible to use only one subwoofer with Left and Right speakers
Optional wheels, ergonomic integrated carrying handles and tour-grade plywood cabinets allow an easy transport
- Bass-reflex design with high SPL and punch
- 320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
- Frequency response from 40Hz to 140Hz
- New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
- Digital Signal processor with 8 presets, 2 equalization with 2 LPF Crossover settings, cardioid configuration
- Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m, Phase Reversal Switch 0°-180°, 3 status LED indicators
- 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
- M20 (20mm) top mount speaker stand socket and two aluminum ergonomic FBT handles
Specification:
- Built-in amplifier LF/HF: 700 W RMS
- Built-in amplifier peak LF/HF: 1400 W
- Frequency response: 42Hz - 140Hz -6dB
- Low Frequency woofer: 12 inch
- Maximum SPL cont/peak: 129/133 Half-space dB
- Dispersion: omnidirectional HxV
- Input impedance: 22 Kohm
- Crossover Frequency: 90 or 140Hz KHz
- AC Power requirements: 240v
- Input connector: stereo XLR with loop, HP out
- Power cord: 5m
- Net Dimension (WxHxD): 430x447x480mm
- Net Weight: 23kg
- Transport Dimension (WxHxD): 530x547x580mm
- Transport Weight: 27Kg
